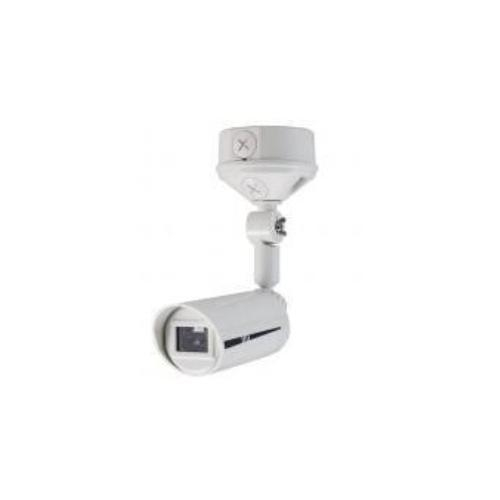

Buy TAKEX TX-124R, Outdoor PIR Sensor 33' Ultraviolet, Outdoor/Indoor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Detects ultraviolet rays contained in flames
Compatible with leading wireless transmitter models
Powered by DC3V (CR-123A) battery
Weatherproof construction suitable for outdoor use
H/L sensitivity settings
4-stage detection timer (1, 6, 15 or 30 sec.)

30m (66ft) Outdoor Battery Operated Flame Sensor for Wireless Systems

Wires are no longer necessary - substantially reduce installation costs!

High sensitivity flame sensor with ultra-low Current Consumption plays a crucial role for wireless fire-watching systems.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories

Detection system

Ultraviolet rays detection
(detected wave length 180~260nm)

Detection area

Distance
10m (33ft) max. (Gas flame of lighter in front of sensor approx. 7cm flame)
30m (100ft) max. (N-heptane flame on fire plate 15cm x 15cm approx. 60cm)
Angle
Horizontal: approx. 100 degrees (60 degrees downward)
Vertical: approx. 75 degrees (15 degrees upward)
Adjustment range
Horizontal 180 degrees by base unit
Vertical 90 degrees

Sensitivity adjustment

Sensitivity: H (100%), L (50%) (selectable)
Detection timer: 1sec, 6sec, 15sec, 30sec (selectable)

Supply voltage

(Red/Black wires) DC3V (CR-123A)

Current Consumption

Standby: 55μA max. / Detection: 1mA max.

Detection output

(Blue/White wires)
Solid State Switch N.C, 3VDC 0.01A max.
Output when detecting ultraviolet, Real time + delay time 2 sec

Operation LED

Detection: Red LED
Real time + delay time 2 sec.

Ambient temperature

-20°C to +50°C (-4°F to +122°F)

Installation

Indoor/outdoor

Weight

Approx. 510g (17.9oz)

Appearance

Sensor part: PC resin (white)
Bracket: AES resin (white)

Product Details

Subject to the use of all the optional accessories

Detection system

Ultraviolet rays detection
(detected wave length 180~260nm)

Detection area

Distance
10m (33ft) max. (Gas flame of lighter in front of sensor approx. 7cm flame)
30m (100ft) max. (N-heptane flame on fire plate 15cm x 15cm approx. 60cm)
Angle
Horizontal: approx. 100 degrees (60 degrees downward)
Vertical: approx. 75 degrees (15 degrees upward)
Adjustment range
Horizontal 180 degrees by base unit
Vertical 90 degrees

Sensitivity adjustment

Sensitivity: H (100%), L (50%) (selectable)
Detection timer: 1sec, 6sec, 15sec, 30sec (selectable)

Supply voltage

(Red/Black wires) DC3V (CR-123A)

Current Consumption

Standby: 55μA max. / Detection: 1mA max.

Detection output

(Blue/White wires)
Solid State Switch N.C, 3VDC 0.01A max.
Output when detecting ultraviolet, Real time + delay time 2 sec

Operation LED

Detection: Red LED
Real time + delay time 2 sec.

Ambient temperature

-20°C to +50°C (-4°F to +122°F)

Installation

Indoor/outdoor

Weight

Approx. 510g (17.9oz)

Appearance

Sensor part: PC resin (white)
Bracket: AES resin (white)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
