Socomec, USDBPB30ND0, Diris DigiBOX B-30 Enclosure, 480V Power Supply, No Display, RS485 Communication
Features:
- Safe and reliable
- Plug & Play design
- Accurate
- Factory pre-wired avoiding wiring errors
- Quick RJ12 lead connections to smart current sensors
- Global accuracy class 0.5 (including current sensors) according to ANSI C12.20.
- Embedded web based software
- Unique single-point voltage sensing
Applications:
- Renewable
- Infrastructure
- Industry
- Buildings
Compliance with standards:
- cULus 508A
- ANSI C12.20
- IEC 61557-12
- UL 61010-1 CSA-C22.2 No. 61010-1 Guide PICQ File E257746

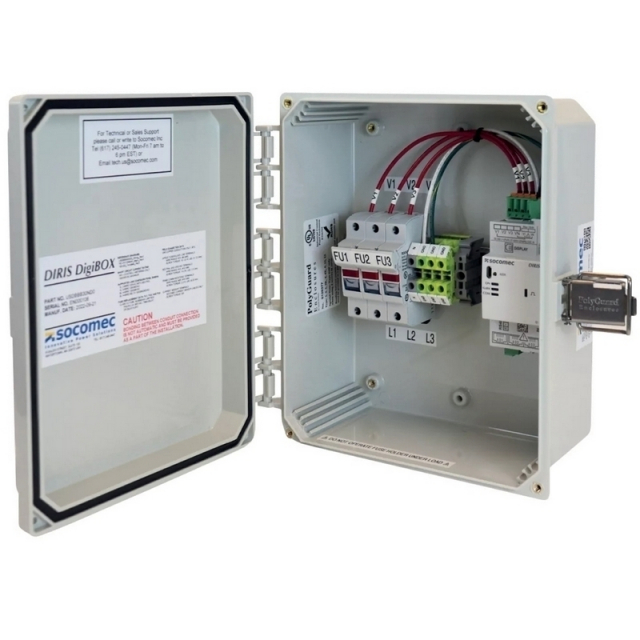

DIRIS DigiBOX B is an easy-to-install enclosed single-point submetering solution. It provides users with all they need for a complete submeter installation. Simply select the current sensors (CTs) from wide plug-and-play selection to complete your system. With just two parts numbers, DIRIS DigiBOX B allows you to address a wide range of metering applications. DigiBOX B is powered by DIRIS B-30 power monitoring device that communicates Modbus RTU via RS485.
For more information, please see
Data Sheet
