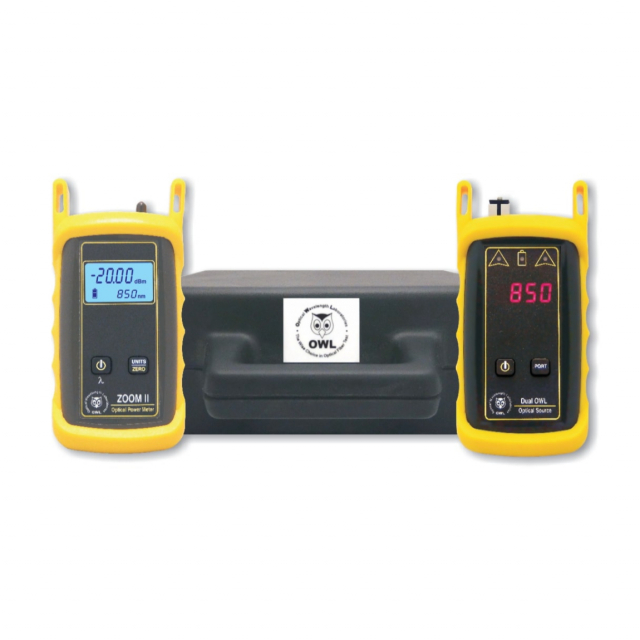

OWL KIT-Z2S-D285st Silicon ZOOM 2, Dual OWL 850 Test Kit, -20 dBm, ST

KIT-Z2S-D285st Includes Only:

• Power Meter: Silicon ZOOM 2
• Light Source: Dual OWL 850
• Product manuals
• Battery chargers
• NIST certificate
• Carrying case
• Protective rubber boots

Features:

• Economical option for quick attenuation and loss testing of multimode networks at 850nm
• Easy-to-read 4-digit 7-segment backlit LCD display
• Re-chargeable Lithium Polymer battery
• Store reference values for calibrated wavelengths
• Intuitive 2-button interface on both units
• On-screen wavelength, measurement units, and low battery indicator
• NISTtraceable
• Light source comes configured with ST connector.

The Silicon ZOOM 2 / Dual OWL 850 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks. The Silicon ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter designed to provide accurate testing of multimode fiber cables at 850nm wavelength. The 4-digit 7-segment LCD display shows power readings with a resolution of 0.01dB, power units in dBm, dB, or uW, and battery power level. The Silicon ZOOM 2 comes configured with a 2.5 mm universal port for connection to SC, ST, and other connector types that have a 2.5 mm ferrule. The Dual OWL 850 is an 850nm NIST traceable multimode light source. Its 850nm output is temperature-stabilized for accurate measurements. The Dual OWL 850 comes with a ST connector.
