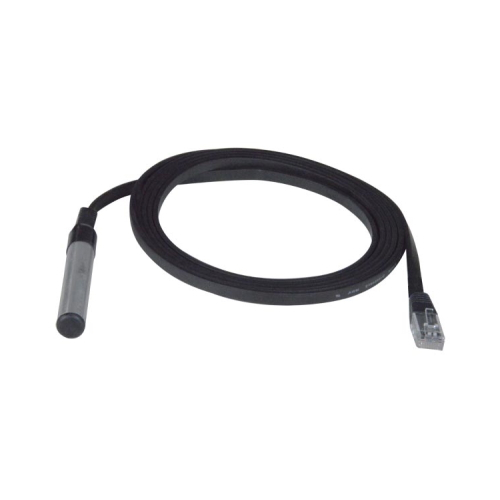

NTI e-stsma-e7 Probe-Style Temperature Sensor, 7 ft

Probe-Style Temperature Sensor, 7 ft, Aluminum Enclosure

Features:

• For use with E-2D/5D/16D.
  • E-2D: only compatible with Rev C units (features two power inputs).
  • Not compatible with E-SEMS-16(U).
• Applications from -4 to 140°F (-20 to 60°C).
• High resistance to external influences on the cable due to digital output signal.
• Temperature accuracy:
  • ±1.26°F (±0.70°C) for -4 to 41°F (-20 to 5°C).
  • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
• Aluminum probe for added thermal conductivity (applications where surface temperature is needed).
• Length: 7 feet.
• Includes an RJ45 coupler to extend the sensor up to 1000 feet (305 m) using CATx cable (minimum 24AWG).
• MTBF: 3,904,220 hours.
• Current consumption: 20mA @ 12VDC.
• Powered by E-2D/5D/16D.
• Regulatory approvals: CE, RoHS.
• Compatible with E-FSC Fiber Converter/Extender.
  • Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
