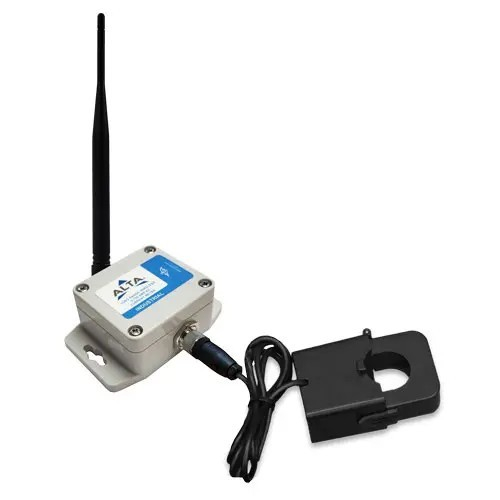

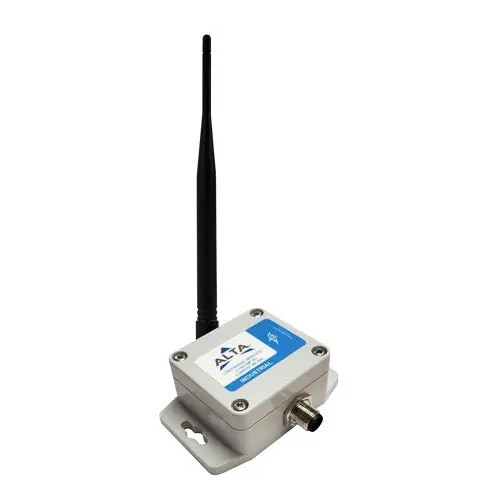

Buy Monnit MNS2-9-IN-CM-500D, Industrial Wireless 500 Amp AC Current Meter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

AMP:: AMP: 500

MNS2-9-IN-CM-500D Includes Only:

Wireless Sensor Mounting Hardware
3V Industrial Battery (Pre-Installed)
SMA Antenna

Features:

Measures:
- Minimum, Maximum, and Average in Amp-RMS
- Current Accumulation in Amp-hours
- Resolution: 0.1-0.3 Amp-RMS
Accuracy:
- Uncalibrated: ±2% (typical)
- Calibrated: ±1% (typical)
Configurable thresholds for critical condition monitoring
Industrial 150 Amp and 500 Amp options come standard with a detachable lead
Wireless range of 2,000+ feet through 18+ walls
Frequency-Hopping Spread Spectrum (FHSS)
Best-in-class interference immunity
Best-in-class power management for longer battery life
Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 Cipher Block Chaining (CBC) for sensor data messages)
Sensor logs 2,000 to 4,000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats ≈ 22 days
- 2-hour Heartbeats ≈ 266 days
Automatic over-the-air updates to sensor firmware (future-proof)
Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS, email, and voice call

Applications:

Current monitoring
Current usage
Amperage monitoring
Amp-hour metering

ALTA Wireless Current Meters measure one or three AC RMS signals produced by current transformers (CTs). The analog current measurements are periodically converted to digital current measurements based on a user-configurable measurement interval. The meters report the minimum, maximum, and average current per CT, and the accumulated current over time at a user-configurable reporting interval or Heartbeat.

Single-phase current meters can be calibrated for improved accuracy. Also, iMonnit can scale the accumulated current into kilowatt-hours for power monitoring.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Specification	Value
Absolute Max CT Current	600 Amps RMS (A RMS)
Maximum Accurate CT Current	500 A RMS
Frequency Range	50-100 Hz
Accuracy	± (2% + 1.4 A RMS)
Calibrated Accuracy with Appropriate Offset	± (1% + 0.7 A RMS)
Offset Compensation Limits	-327.68 to +327.68 A RMS (default set to +1.45 A RMS)
Measurement Resolution	~0.3 A RMS
Typical Deadband	~1.45 A RMS
Weight	14.55 oz (CT only), 15.35 oz (CT + Industrial Connector)
Lead Length	0.9 m (3 ft)
ALTA Wireless
Specification	Value
Data Logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute
Heartbeats	~22 days (10-minute), 2-hour Heartbeats = ~266 days
Wireless Protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless Transmission Power (EIRP)	50 mW (900 MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless Range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
General
Specification	Value
Battery Voltage Range	2.0 to 3.8 VDC
Operating Altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage Altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating Humidity	5 to 85% RH (non-condensing)

Product Details

Specification	Value
Absolute Max CT Current	600 Amps RMS (A RMS)
Maximum Accurate CT Current	500 A RMS
Frequency Range	50-100 Hz
Accuracy	± (2% + 1.4 A RMS)
Calibrated Accuracy with Appropriate Offset	± (1% + 0.7 A RMS)
Offset Compensation Limits	-327.68 to +327.68 A RMS (default set to +1.45 A RMS)
Measurement Resolution	~0.3 A RMS
Typical Deadband	~1.45 A RMS
Weight	14.55 oz (CT only), 15.35 oz (CT + Industrial Connector)
Lead Length	0.9 m (3 ft)
ALTA Wireless
Specification	Value
Data Logging	Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute
Heartbeats	~22 days (10-minute), 2-hour Heartbeats = ~266 days
Wireless Protocol	ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
Wireless Transmission Power (EIRP)	50 mW (900 MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Wireless Range	2,000+ ft. through 18+ walls with the ALTA XL Gateway
Security	Encrypt-RF (256-bit key exchange and AES-128 CTR)
General
Specification	Value
Battery Voltage Range	2.0 to 3.8 VDC
Operating Altitude (non-pressurized environments)	-15.2 to 1,982 m (-50 to 6,500 ft)
Storage Altitude (non-pressurized environments)	-15.2 to 3,048 m (-50 to 10,000 ft)
Operating Humidity	5 to 85% RH (non-condensing)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
