Buy Destaco 827-S, 827 Series Pneumatic Hold-Down Action Toggle Clamp

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Maximum Holding Capacity (lbf):: Maximum Holding Capacity (lbf): 700

Features:

Dual mounting surfaces for maximum flexibility
Sensor ready for round or T-slot style sensors
Built-in flow restriction eliminates need for external flow controls

Applications:

Assembly
Welding

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Weight (lb)

4.71

Maximum Holding Capacity (lbf)

700.0

Exerting Force (lbf)

49.0

Clamp Arm Length (in)

3.18

Air Consumption (ft³)

0.029

Height Under Clamp Arm (in)

3.91

Cylinder Bore (in)

1.57

Air Port size

1/8 NPT

Operating Temperature

-10° to 90°C (-14° to 194° F)

Duty Cycle

Fair/Medium

Clamp Arm Style

Solid

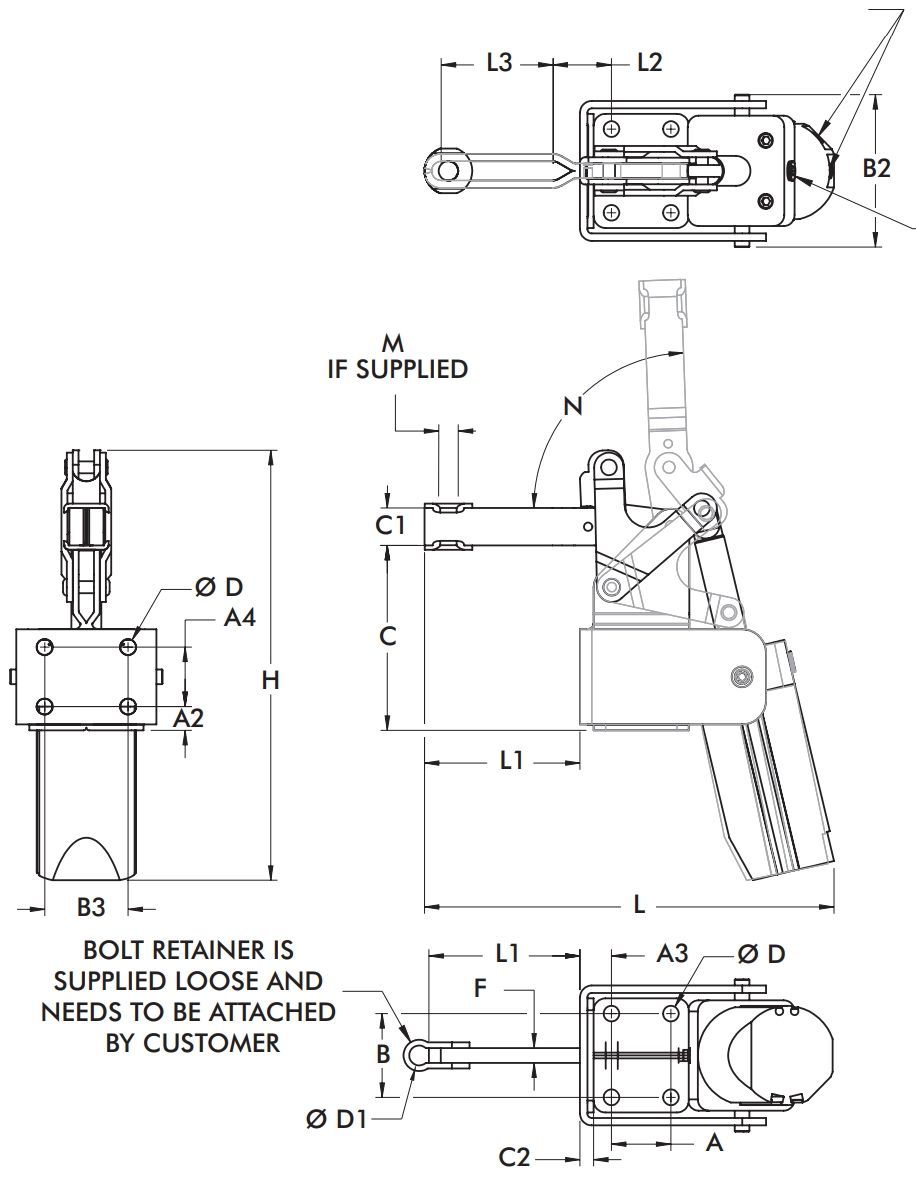

Dimensions

A - 1.25" (31,8mm)
A2 - 0.51" (12,8mm)
A3 - 0.66" (16,8mm)
A4 - 1.25" (31,8mm)
B - 1.75" (44,45mm)
B2 - 3.08" (78,3mm)
B3 - 1.75" (44,45mm)
C - 3.91" (99,2mm)
C1 - 0.75" (19,1mm)
C2 - 0.12" (3,1mm)
C3 - 2" (50,8mm)
C4 - 1.78" (45,3mm)
ØD - 0.33" (8,4mm)
ØD1 - 0.42" (10,7mm)
F - 0.31" (7,9mm)
H - 9.04" (229,7mm)
L - 8.49" (215,6mm)
L1 - 3.18" (80,7mm)
M - 3/8 M10
N - 88°
