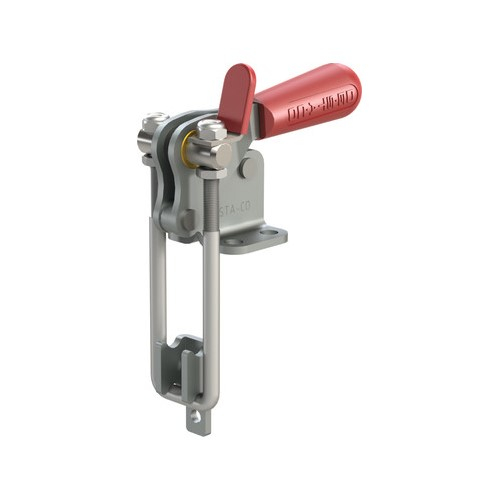

Buy Destaco 334-M-100, Pull Action Latch Clamp U-Hook 204.2mm

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Features:

Vertical handles are designed with a latching hook that is 90 degrees to the mounting base.
They are manufactured with holding capacities of up to 4,000 pounds.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Clamping Orientation	Vertical
Bar Style	U-Hook
Load Capacity (N)	4450.00
Load Capacity (Lb.)	1000
Base Style	Flanged
Material	Carbon Steel
Handle Style	Straight
Overall Length (Decimal Inch)	8.0394
Overall Length (mm)	204.20
Overall Height (mm)	132.33
Overall Height (Decimal Inch)	5.2100
Drawing Movement (mm)	51.82
Drawing Movement (Decimal Inch)	2.040
Handle Color	Red
Base Length (mm)	33.27
Base Length (Decimal Inch)	1.3100
Base Width (mm)	39.62
Base Width (Decimal Inch)	1.5600
Mounting Hole Diameter (mm)	7.11
Mounting Hole Diameter (Decimal Inch)	0.2800
Width Distance Between Mount Holes (mm)	25.40
Width Distance Between Mount Holes (Decimal Inch)	1.0000
Length Distance Between Mount Holes (mm)	19.05
Length Distance Between Mount Holes (Decimal Inch)	0.7500
Bar Width (mm)	28.70
Bar Width (Decimal Inch)	1.1300
Base to Center of Bar (Decimal Inch)	0.3500
Base to Center of Bar (mm)	8.89

Clamping Orientation	Vertical
Bar Style	U-Hook
Load Capacity (N)	4450.00
Load Capacity (Lb.)	1000
Base Style	Flanged
Material	Carbon Steel
Handle Style	Straight
Overall Length (Decimal Inch)	8.0394
Overall Length (mm)	204.20
Overall Height (mm)	132.33
Overall Height (Decimal Inch)	5.2100
Drawing Movement (mm)	51.82
Drawing Movement (Decimal Inch)	2.040
Handle Color	Red
Base Length (mm)	33.27
Base Length (Decimal Inch)	1.3100
Base Width (mm)	39.62
Base Width (Decimal Inch)	1.5600
Mounting Hole Diameter (mm)	7.11
Mounting Hole Diameter (Decimal Inch)	0.2800
Width Distance Between Mount Holes (mm)	25.40
Width Distance Between Mount Holes (Decimal Inch)	1.0000
Length Distance Between Mount Holes (mm)	19.05
Length Distance Between Mount Holes (Decimal Inch)	0.7500
Bar Width (mm)	28.70
Bar Width (Decimal Inch)	1.1300
Base to Center of Bar (Decimal Inch)	0.3500
Base to Center of Bar (mm)	8.89

Note: Please read description carefully. Do not base your order on the picture presented.
