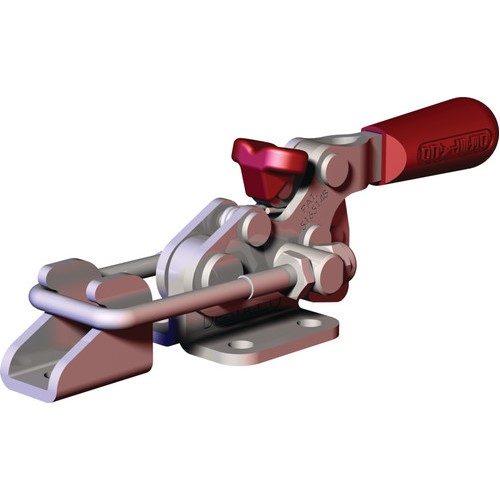

Destaco 323-R-M-50 Carbon Steel Pull Action Latch Clamp

Overall Length: 6.2"
  • Brand Destaco
  • Part # 323-R-M-50
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Overall Length:
Overall Length: 6.2"

Features:

  • Supplied with threaded U-hooks for easy adjustment
  • Latch plate
  • With Toggle Lock Plus

Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Clamping OrientationHorizontal
Bar StyleU-Hook
Load Capacity (N)1600.00
Load Capacity (Lb.)360
Base StyleFlanged
MaterialCarbon Steel
Handle StyleStraight
Overall Length (Decimal Inch)6.2165
Overall Length (mm)157.90
Overall Height (mm)30.23
Overall Height (Decimal Inch)1.1900
Drawing Movement (mm)29.72
Drawing Movement (Decimal Inch)1.170
Handle ColorRed
Base Length (mm)25.91
Base Length (Decimal Inch)1.0200
Base Width (mm)27.94
Base Width (Decimal Inch)1.1000
Mounting Hole Diameter (mm)4.32
Mounting Hole Diameter (Decimal Inch)0.1700
Width Distance Between Mount Holes (mm)19.05
Width Distance Between Mount Holes (Decimal Inch)0.7500
Length Distance Between Mount Holes (mm)16.00
Length Distance Between Mount Holes (Decimal Inch)0.6300
Bar Width (mm)19.05
Bar Width (Decimal Inch)0.7500
Base to Center of Bar (Decimal Inch)0.4700
Base to Center of Bar (mm)11.94
Product Details
Clamping OrientationHorizontal
Bar StyleU-Hook
Load Capacity (N)1600.00
Load Capacity (Lb.)360
Base StyleFlanged
MaterialCarbon Steel
Handle StyleStraight
Overall Length (Decimal Inch)6.2165
Overall Length (mm)157.90
Overall Height (mm)30.23
Overall Height (Decimal Inch)1.1900
Drawing Movement (mm)29.72
Drawing Movement (Decimal Inch)1.170
Handle ColorRed
Base Length (mm)25.91
Base Length (Decimal Inch)1.0200
Base Width (mm)27.94
Base Width (Decimal Inch)1.1000
Mounting Hole Diameter (mm)4.32
Mounting Hole Diameter (Decimal Inch)0.1700
Width Distance Between Mount Holes (mm)19.05
Width Distance Between Mount Holes (Decimal Inch)0.7500
Length Distance Between Mount Holes (mm)16.00
Length Distance Between Mount Holes (Decimal Inch)0.6300
Bar Width (mm)19.05
Bar Width (Decimal Inch)0.7500
Base to Center of Bar (Decimal Inch)0.4700
Base to Center of Bar (mm)11.94
Note

Note: Please read description carefully. Do not base your order on the picture presented.
