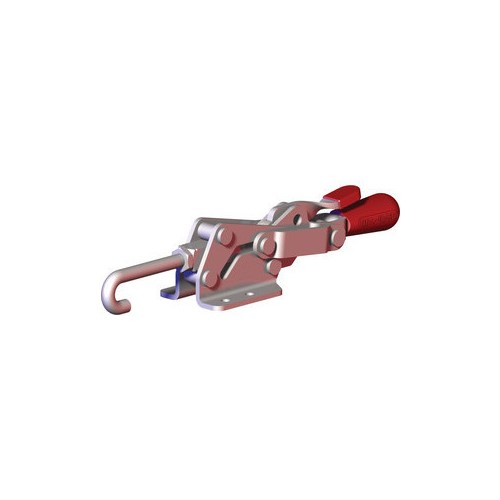

Buy Destaco 3051-R, Pull Action Latch Clamp J-Hook with Toggle Lock Plus

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Fast, safe, one-handed operation
With Toggle Lock Plus
Integrated lock-out hole for pin or lock

This clamp offers a level safety and utility not found in any other toggle clamp. The innovative controlled hook motion allows quick, safe, one-handed operation. The clamp's over-center condition is not affected by the elevation of the latch point,

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Maximum Holding Capacity (lbsf)	1,500
Drawing Movement (in)	0.750
Hook Adjustment (in)	0.550
Max Hook Adjustment (in)	0.550
Ef:Af Exerting Force: Applied Force (pushing/pulling)	12:1
Standard Material	Steel
Toggle Lock Plus	Yes
Base Mounting Style	Flange
Hook Type	J-Hook
Replacement Hook Assembly	3051208
Product Type	Controlled
Weight (lb)	1.10
Product Series Description	Pull Action Latch Clamp
Product Function	Clamping
Product Family	Manual Clamping
Product Group	Pull-action Latch Clamps

Product Details

Maximum Holding Capacity (lbsf)	1,500
Drawing Movement (in)	0.750
Hook Adjustment (in)	0.550
Max Hook Adjustment (in)	0.550
Ef:Af Exerting Force: Applied Force (pushing/pulling)	12:1
Standard Material	Steel
Toggle Lock Plus	Yes
Base Mounting Style	Flange
Hook Type	J-Hook
Replacement Hook Assembly	3051208
Product Type	Controlled
Weight (lb)	1.10
Product Series Description	Pull Action Latch Clamp
Product Function	Clamping
Product Family	Manual Clamping
Product Group	Pull-action Latch Clamps

Note

Note: Please read description carefully. Do not base your order on the picture presented.
