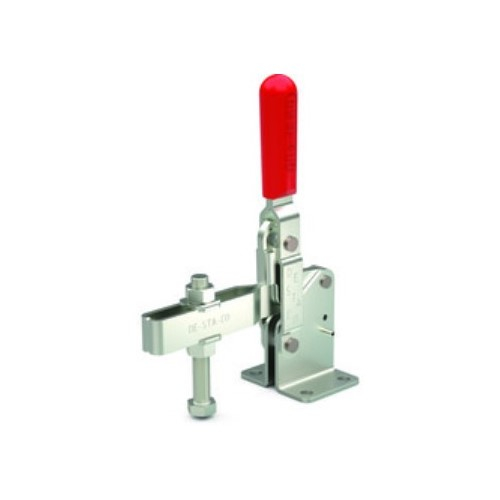

Destaco, 267-U, 1,200lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp

267-U Includes Only:

Heavy duty vertical hold down clamp is the largest of stamped toggle clamp

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Handle Orientation	Vertical
Bar Style	U-Bar
Base Style	Flanged
Bar End Type	Fixed Spindle
Holding Capacity (N)	5340.00
Holding Capacity (Lb.)	1200.00
Length Distance Between Mount Holes (mm)	50.80
Length Distance Between Mount Holes (Decimal Inch)	2.0
Width Distance Between Mount Holes (mm)	69.85
Width Distance Between Mount Holes (Decimal Inch)	2.7500
Height Under Bar (mm)	78.23
Height Under Bar (Decimal Inch)	3.0800
Overall Length (Decimal Inch)	8.8700
Overall Height (mm)	304.04
Overall Height (Decimal Inch)	11.9700
Base Length (mm)	76.20
Base Length (Decimal Inch)	3.0000
Base Width (mm)	95.00
Base Width (Decimal Inch)	3.7400
Handle Style	Straight
Material	Carbon Steel
Handle Color	Red
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	8.89
Mounting Hole Diameter (Decimal Inch)	0.3500
Front of Base To Tip Of Toggle Bar (mm)	149.10
Front of Base To Tip Of Toggle Bar (Decimal Inch)	5.8700
Bar Opening (Degrees)	140.00
Handle Movement (Degrees)	72.00
Maximum Mechanical Advantage	18:1; 8:1
Spindle Thread Size	M16x2
Spindle Travel (mm)	99.57
Spindle Travel (Decimal Inch)	3.9200
Bar Width (Decimal Inch)	1.2500
Bar Width (mm)	31.75

Handle Orientation	Vertical
Bar Style	U-Bar
Base Style	Flanged
Bar End Type	Fixed Spindle
Holding Capacity (N)	5340.00
Holding Capacity (Lb.)	1200.00
Length Distance Between Mount Holes (mm)	50.80
Length Distance Between Mount Holes (Decimal Inch)	2.0
Width Distance Between Mount Holes (mm)	69.85
Width Distance Between Mount Holes (Decimal Inch)	2.7500
Height Under Bar (mm)	78.23
Height Under Bar (Decimal Inch)	3.0800
Overall Length (Decimal Inch)	8.8700
Overall Height (mm)	304.04
Overall Height (Decimal Inch)	11.9700
Base Length (mm)	76.20
Base Length (Decimal Inch)	3.0000
Base Width (mm)	95.00
Base Width (Decimal Inch)	3.7400
Handle Style	Straight
Material	Carbon Steel
Handle Color	Red
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	8.89
Mounting Hole Diameter (Decimal Inch)	0.3500
Front of Base To Tip Of Toggle Bar (mm)	149.10
Front of Base To Tip Of Toggle Bar (Decimal Inch)	5.8700
Bar Opening (Degrees)	140.00
Handle Movement (Degrees)	72.00
Maximum Mechanical Advantage	18:1; 8:1
Spindle Thread Size	M16x2
Spindle Travel (mm)	99.57
Spindle Travel (Decimal Inch)	3.9200
Bar Width (Decimal Inch)	1.2500
Bar Width (mm)	31.75

Note: Please read description carefully. Do not base your order on the picture presented.
