Buy Destaco 207-USS, Manual Hold Down Toggle Clamp, 450lb Holding Capacity

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

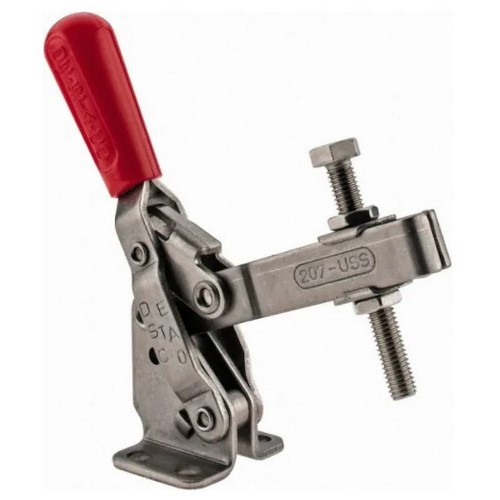

Destaco, 207-USS, 450lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp

The world's most widely used toggle clamp. Has the most features and options of any series in toggle clamp line.

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Handle Orientation	Vertical
Bar Style	U-Bar
Base Style	Flanged
Bar End Type	Closed
Holding Capacity (N)	2000.00
Holding Capacity (Lb.)	449.62
Length Distance Between Mount Holes (mm)	19.05
Length Distance Between Mount Holes (Decimal Inch)	0.75
Width Distance Between Mount Holes (mm)	31.75
Width Distance Between Mount Holes (Decimal Inch)	1.2500
Height Under Bar (mm)	31.75
Height Under Bar (Decimal Inch)	1.2500
Overall Height (mm)	143.00
Overall Height (Decimal Inch)	5.6300
Base Length (mm)	35.05
Base Length (Decimal Inch)	1.3800
Base Width (mm)	43.94
Base Width (Decimal Inch)	1.7300
Handle Style	Straight
Material	Stainless Steel
Handle Color	Red
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	7.11
Mounting Hole Diameter (Decimal Inch)	0.2800
Bar Opening (Degrees)	99.00
Handle Movement (Degrees)	57.00
Maximum Mechanical Advantage	10:1; 5:1
Spindle Thread Size	5/16; M8
Bar Width (Decimal Inch)	0.6300
Bar Width (mm)	16.00

Handle Orientation	Vertical
Bar Style	U-Bar
Base Style	Flanged
Bar End Type	Closed
Holding Capacity (N)	2000.00
Holding Capacity (Lb.)	449.62
Length Distance Between Mount Holes (mm)	19.05
Length Distance Between Mount Holes (Decimal Inch)	0.75
Width Distance Between Mount Holes (mm)	31.75
Width Distance Between Mount Holes (Decimal Inch)	1.2500
Height Under Bar (mm)	31.75
Height Under Bar (Decimal Inch)	1.2500
Overall Height (mm)	143.00
Overall Height (Decimal Inch)	5.6300
Base Length (mm)	35.05
Base Length (Decimal Inch)	1.3800
Base Width (mm)	43.94
Base Width (Decimal Inch)	1.7300
Handle Style	Straight
Material	Stainless Steel
Handle Color	Red
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	7.11
Mounting Hole Diameter (Decimal Inch)	0.2800
Bar Opening (Degrees)	99.00
Handle Movement (Degrees)	57.00
Maximum Mechanical Advantage	10:1; 5:1
Spindle Thread Size	5/16; M8
Bar Width (Decimal Inch)	0.6300
Bar Width (mm)	16.00

Note: Please read description carefully. Do not base your order on the picture presented.
