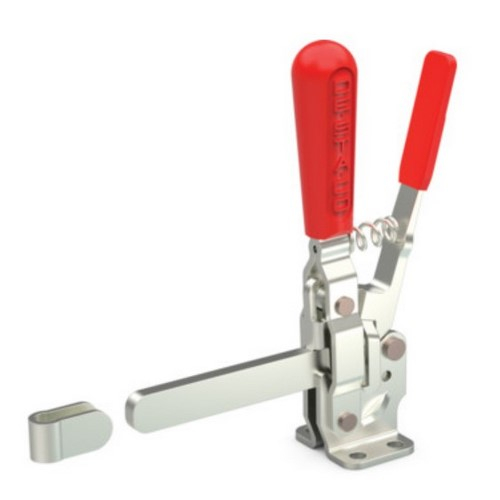

Destaco, 207-LR, 500lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp

The world's most widely used toggle clamp. Has the most features and options of any series in toggle clamp line.

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Handle Orientation	Vertical
Bar Style	Solid
Base Style	Flanged
Bar End Type	Closed
Holding Capacity (N)	2220.00
Holding Capacity (Lb.)	500.00
Length Distance Between Mount Holes (mm)	19.05
Length Distance Between Mount Holes (Decimal Inch)	0.75
Width Distance Between Mount Holes (mm)	31.75
Width Distance Between Mount Holes (Decimal Inch)	1.2500
Height Under Bar (mm)	31.75
Height Under Bar (Decimal Inch)	1.2500
Overall Length (Decimal Inch)	4.5000
Overall Height (mm)	176.02
Overall Height (Decimal Inch)	6.9300
Base Length (mm)	35.05
Base Length (Decimal Inch)	1.3800
Base Width (mm)	43.94
Base Width (Decimal Inch)	1.7300
Handle Style	Straight
Material	Carbon Steel
Handle Color	Red
Finish/Coating	Electro-Plated Zinc
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	7.11
Mounting Hole Diameter (Decimal Inch)	0.2800
Front of Base To Tip Of Toggle Bar (mm)	88.39
Front of Base To Tip Of Toggle Bar (Decimal Inch)	3.4800
Bar Opening (Degrees)	99.00
Handle Movement (Degrees)	57.00
Maximum Mechanical Advantage	5:1; 10:1
Bar Width (Decimal Inch)	0.6300
Bar Width (mm)	16.00
Bar Thickness (mm)	6.10
Bar Thickness (Decimal Inch)	0.2400

Handle Orientation	Vertical
Bar Style	Solid
Base Style	Flanged
Bar End Type	Closed
Holding Capacity (N)	2220.00
Holding Capacity (Lb.)	500.00
Length Distance Between Mount Holes (mm)	19.05
Length Distance Between Mount Holes (Decimal Inch)	0.75
Width Distance Between Mount Holes (mm)	31.75
Width Distance Between Mount Holes (Decimal Inch)	1.2500
Height Under Bar (mm)	31.75
Height Under Bar (Decimal Inch)	1.2500
Overall Length (Decimal Inch)	4.5000
Overall Height (mm)	176.02
Overall Height (Decimal Inch)	6.9300
Base Length (mm)	35.05
Base Length (Decimal Inch)	1.3800
Base Width (mm)	43.94
Base Width (Decimal Inch)	1.7300
Handle Style	Straight
Material	Carbon Steel
Handle Color	Red
Finish/Coating	Electro-Plated Zinc
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	7.11
Mounting Hole Diameter (Decimal Inch)	0.2800
Front of Base To Tip Of Toggle Bar (mm)	88.39
Front of Base To Tip Of Toggle Bar (Decimal Inch)	3.4800
Bar Opening (Degrees)	99.00
Handle Movement (Degrees)	57.00
Maximum Mechanical Advantage	5:1; 10:1
Bar Width (Decimal Inch)	0.6300
Bar Width (mm)	16.00
Bar Thickness (mm)	6.10
Bar Thickness (Decimal Inch)	0.2400

Note: Please read description carefully. Do not base your order on the picture presented.
