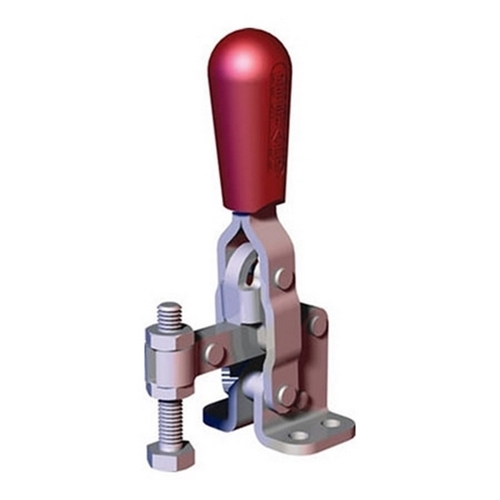

Destaco, 202-SS, 250lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp

One of the most popular series in line of vertical hold-down clamps. Ideal for use in checking fixtures.

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Handle Orientation	Vertical
Bar Style	Solid
Base Style	Flanged
Bar End Type	Fixed Spindle
Holding Capacity (N)	1110.00
Holding Capacity (Lb.)	250.00
Length Distance Between Mount Holes (mm)	12.45
Length Distance Between Mount Holes (Decimal Inch)	0.49
Width Distance Between Mount Holes (mm)	26.92
Width Distance Between Mount Holes (Decimal Inch)	1.0600
Height Under Bar (mm)	23.62
Height Under Bar (Decimal Inch)	0.9300
Overall Length (mm)	58.67
Overall Length (Decimal Inch)	2.3100
Overall Height (mm)	109.98
Overall Height (Decimal Inch)	4.3300
Base Length (mm)	25.40
Base Length (Decimal Inch)	1.0000
Base Width (mm)	39.62
Base Width (Decimal Inch)	1.5600
Handle Style	Straight
Material	Stainless Steel
Handle Color	Red
Finish/Coating	Electro-Plated Zinc
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	5.59
Mounting Hole Diameter (Decimal Inch)	0.2200
Front of Base To Tip Of Toggle Bar (mm)	33.27
Front of Base To Tip Of Toggle Bar (Decimal Inch)	1.3100
Bar Opening (Degrees)	105.00
Handle Movement (Degrees)	65.00
Maximum Mechanical Advantage	8:1
Spindle Thread Size	M6x1
Spindle Length (mm)	44.00
Bar Width (Decimal Inch)	0.9200
Bar Width (mm)	23.37

Handle Orientation	Vertical
Bar Style	Solid
Base Style	Flanged
Bar End Type	Fixed Spindle
Holding Capacity (N)	1110.00
Holding Capacity (Lb.)	250.00
Length Distance Between Mount Holes (mm)	12.45
Length Distance Between Mount Holes (Decimal Inch)	0.49
Width Distance Between Mount Holes (mm)	26.92
Width Distance Between Mount Holes (Decimal Inch)	1.0600
Height Under Bar (mm)	23.62
Height Under Bar (Decimal Inch)	0.9300
Overall Length (mm)	58.67
Overall Length (Decimal Inch)	2.3100
Overall Height (mm)	109.98
Overall Height (Decimal Inch)	4.3300
Base Length (mm)	25.40
Base Length (Decimal Inch)	1.0000
Base Width (mm)	39.62
Base Width (Decimal Inch)	1.5600
Handle Style	Straight
Material	Stainless Steel
Handle Color	Red
Finish/Coating	Electro-Plated Zinc
Number of Mounting Holes	4
Mounting Hole Diameter (mm)	5.59
Mounting Hole Diameter (Decimal Inch)	0.2200
Front of Base To Tip Of Toggle Bar (mm)	33.27
Front of Base To Tip Of Toggle Bar (Decimal Inch)	1.3100
Bar Opening (Degrees)	105.00
Handle Movement (Degrees)	65.00
Maximum Mechanical Advantage	8:1
Spindle Thread Size	M6x1
Spindle Length (mm)	44.00
Bar Width (Decimal Inch)	0.9200
Bar Width (mm)	23.37

Note: Please read description carefully. Do not base your order on the picture presented.
