In the Box
- ATEN VE803 HDMI USB Extender System
- VE803T HDMI USB Transmitter
- VE803R HDMI USB Receiver
- Power Adapter
- Mounting Kit
- USB Cable, 5.9' (1.8 m)

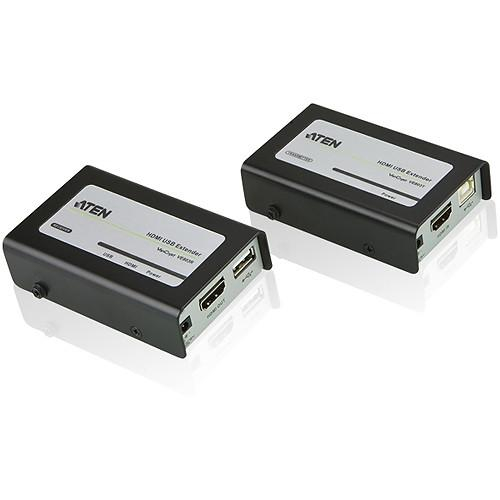

The VE803 HDMI USB Extender System from ATEN extends an HDMI 1080i signal up to 170 feet from the HDMI source using two CAT5e cables. It is capable of sending 1080p signals up to 131 feet. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The HDMI USB Extender is suitable for use in transportation centers, medical facilities, shopping malls, or almost anywhere a touch panel control or kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable, when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy HDMI extender solution for most any application. The VE803 system includes the VE803T and VE803R units.
Uses two CAT5e cables to connect the local and remote units Extends 1080p by 131' and 1080i by 197' Improved HDTV Resolution Quality: 480p, 720p, 1080i, 1080p, VGA, SVGA, XGA, SXGA, UXGA, WUXGA Supports USB touch panel Eight-segment equalization adjustment switch optimizes display quality. Supports Dolby True HD and DTS HD Master Audio . Built-in 8kV/15kV ESD protection. Transparent USB support for all USB 2.0 full speed devices (up to 12 Mbps). Supports widescreen formats HDMI (3D, Deep Color); HDCP compatible with signaling rates up to 2.25 Gbps. Local unit powered via USB cable.
