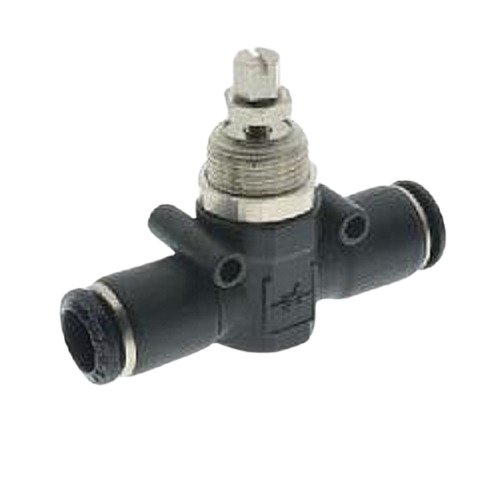

Pictures shown are for illustrative purpose only. Actual product may vary

Package Quantity: Pack of 10 pcs

Options and Related Products

Tube Diameter (mm):: Tube Diameter (mm): 10
Version:: Version: Bi-Directional

Features:

Compact and Sharp in Pneumatic
Limited Pressure Drop
Easy to handle
Function Repeatability
Silicon Free
It provided for wall mounting, with M3 screws inserted into the appropriate locations
Wall mounting, possible through the nipple and threaded ring nut
The O-ring on the needle, improves the sealing of the regulator

Applications:

Pneumatic automation
Automotive process
Food & Beverage
Fluidtechnology
Vacuum

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Pressure Rating

- 0.1 bar - 10 bar

Temperature Rating

- 20 °C / + 80 °C

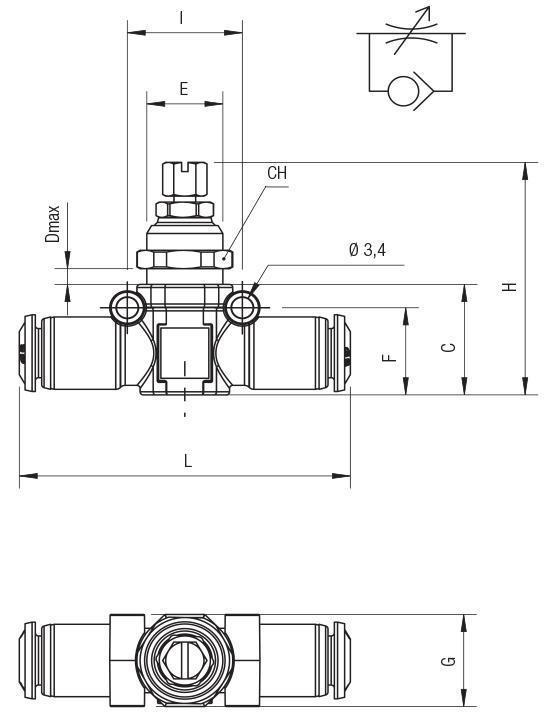

Dimensions

Tube: 10mm
C: 23.5mm
D: 8mm
E: M16x1
F: 19.5mm
G: 19mm
H: 47.5 - 53.5mm
I: 22.5mm
L: 67mm
CH: 18mm

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Pressure Rating

- 0.1 bar - 10 bar

Temperature Rating

- 20 °C / + 80 °C

Dimensions

Tube: 10mm
C: 23.5mm
D: 8mm
E: M16x1
F: 19.5mm
G: 19mm
H: 47.5 - 53.5mm
I: 22.5mm
L: 67mm
CH: 18mm

Note: Please read description carefully. Do not base your order on the picture presented.
