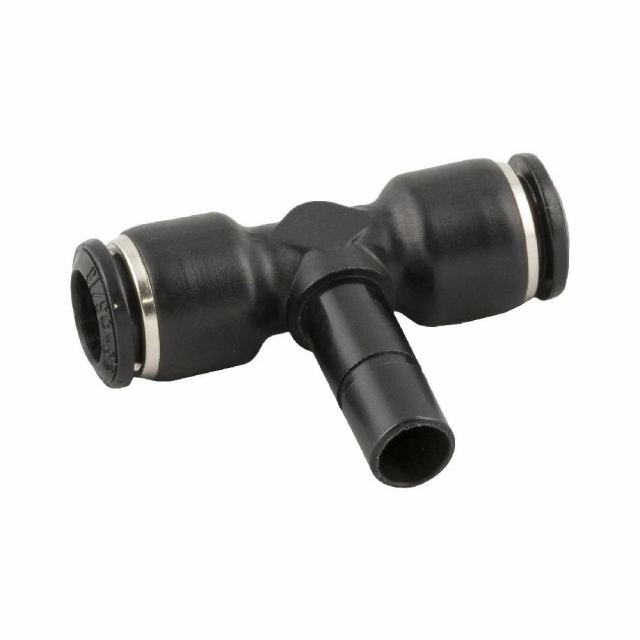

Buy Aignep 55240-10, Composite 10mm Tube x 10mm Stud Plug-In Tee - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Pictures shown are for illustrative purpose only. Actual product may vary

Options and Related Products

Stud Size (mm):: Stud Size (mm): 10

Features:

Quick connection and disconnection
Full Flow and Vacuum resistant tank to specially shaped seals
Lighter and More compact
Specific configurations to satisfy the advanced robotics
Silicon Free

Applications:

Robotics
Automotive
Textile, Packaging, Handling
Compressed Air Circuit
Industrial Water
Vacuum

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Pressure Rating

- 0.99 bar (-0.099 MPa) - 20 bar (2.0 MPa)

Temperature Rating

- 20 °C / + 80 °C

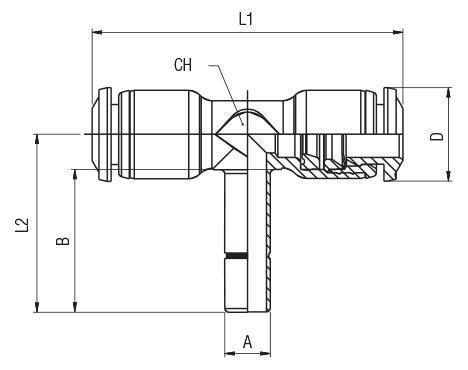

Dimensions

Tube: 10mm
A: 10mm
B: 22.5mm
L1: 53mm
L2: 30mm
CH: 13mm
D: 17mm

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Pressure Rating

- 0.99 bar (-0.099 MPa) - 20 bar (2.0 MPa)

Temperature Rating

- 20 °C / + 80 °C

Dimensions

Tube: 10mm
A: 10mm
B: 22.5mm
L1: 53mm
L2: 30mm
CH: 13mm
D: 17mm

Note: Please read description carefully. Do not base your order on the picture presented.
